EKG Rate

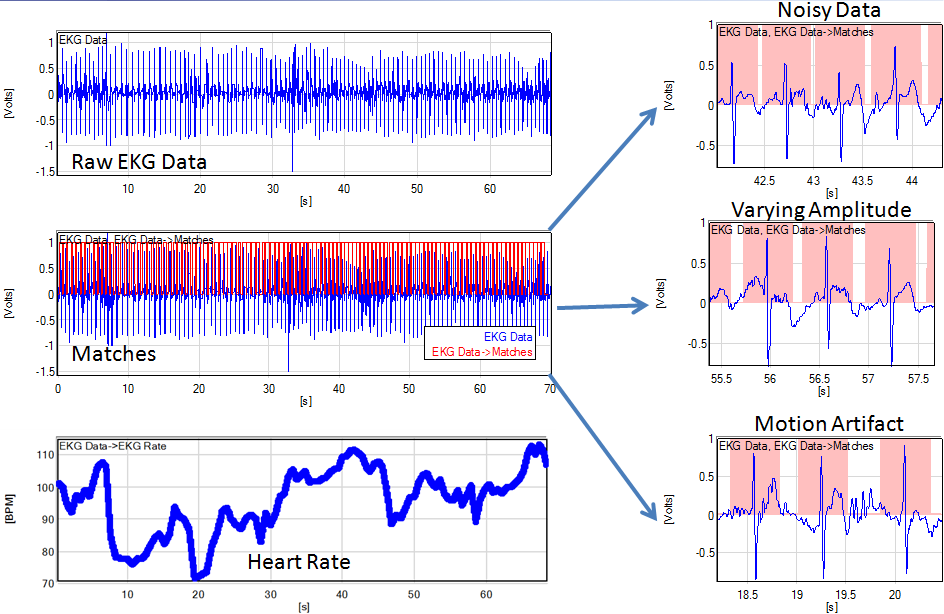

EKG Rate uses several other scripts to produce a heart rate with respect to time data series.  The first step is to use the Template Matching script to determine where each beat is.  The template is automatically.  The output from this is fed into the Rate script, which calculates the rate of rising edges in a data series.  After scaling, a data series representing BPM as a function of time is produced.  The image below depicts the original data, the matches (including closeups of "bad" data sections that were still matched), as well as the final Rate output:
