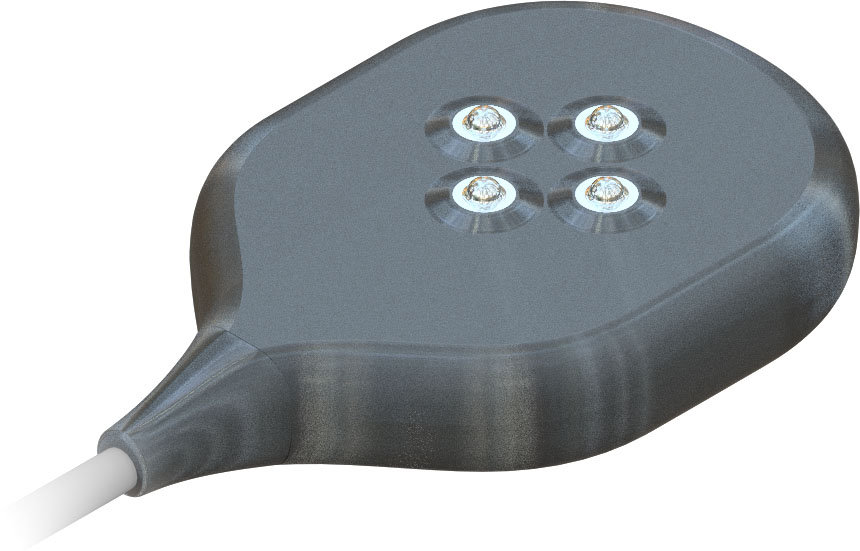

Trigno Galileo Sensor

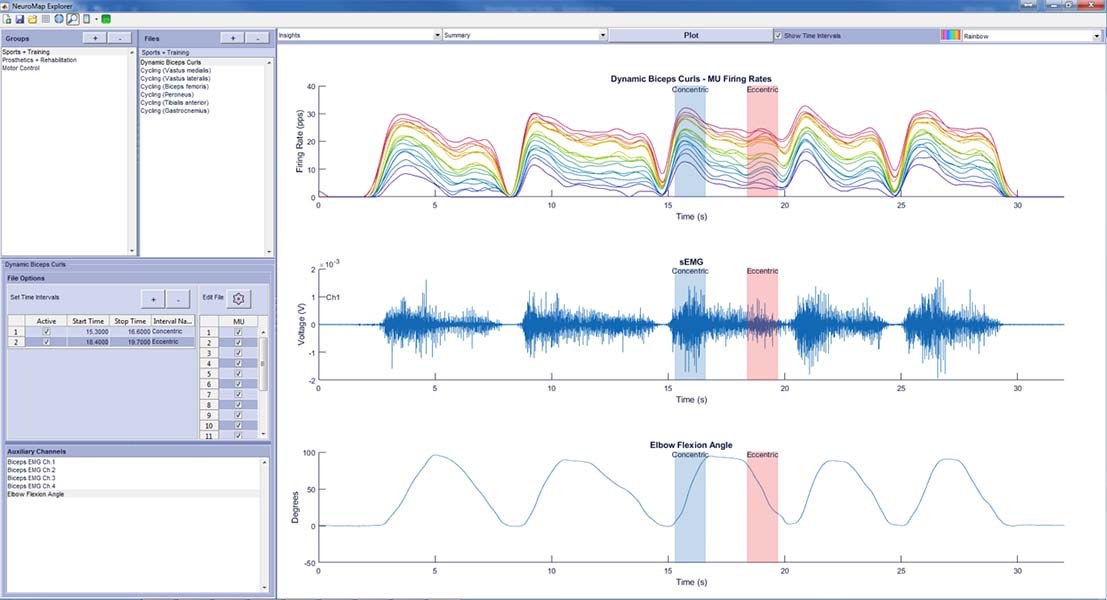

NeuroMap System uses fully-wireless Trigno Galileo dEMG sensor

The first-ever scientific instrument to measure neural firings, muscle activation and kinematics for an integrated approach to human movement. A small unobtrusive sensor design with advanced noise-free wireless protocol transmission to seamlessly obtain high-quality sEMG signals and motor unit data.

NeuroMap System
Sensor Specifications
Quote Request
Trigno Galileo Sensor

Non-invasive EMG sensor

Quality neural information

Kinematic data

Build on our 4-pin mini-grid sensor technology for extracting motor unit data from surface EMG.

Trigno Galileo Sensor

Specifications

User’s Guide

Sensor Channels
10

Analog Channels
4

Reference Type
Dual on-board stabilizing reference

Inter-Electrode Spacing
5 mm

Size (Body)
27 x 46 x 13 mm

Size (Head)
23 x 30 x 7 mm

Mass
19 g

Operating Range
40 m in RF mode
Host Dependent/unlimited datalogger

Wireless Protocol
-2.400-2.483 GHz ISM Band, Proprietary RF Protocol
-BLE V4.2

Analog Bandwidths
10-850 Hz
20-450 Hz

(EMGworks) Analog Sampling Rate (Max)
2222 sa/sec

(EMGworks) Accelerometer Bandwidth (Max)
246 Hz

(EMGworks) Accelerometer Sampling Rate (Max)
741 sa/sec

(EMGworks) Gyroscope Bandwidth (Max)
361 Hz

(EMGworks) Gyroscope Sampling Rate (Max)
741 sa/sec

(EMGworks) Orientation Sampling Rate (Max)
74 sa/sec

Sensor Resolution
16 bits

Sensor Baseline Noise (typical)
750 nV

Sensor Input Range
11 mV / 22 mV rti

CMRR
<-80 dB

Battery Life
4 – 8 hours

Recharge Time (typical)
2.5 hours

Inter-Sensor Latency
< 1 sampling period

Digital Output Delay
Negligible

EMG Analog Output Delay
48 ms Fixed

ACC/Gyro Analog Output Delay
96 ms Fixed

Real-Time Signal Filter
-Butterworth bandpass (40/80 dB/dec)
-RMS Envelope Calculation (100 ms window)

Real-Time IMU Orientation Filter
Quaternions or RPY (selectable)

Material
Medical Grade Polycarbonate

Seal and Protection
UV-sealed to prevent moisture from entering the sensor & to enhance patient safety

Patents
Protected by one or more of the following Patents 6480731, 6238338, 6440067, 9351559, 8971983, EP1070479

(API) EMG Bandwidth (Max)
850 Hz

(API) EMG Sampling Rate (Max)
2222 sa/sec

(API) Accelerometer Bandwidth (Max)
246 Hz

(API) Accelerometer Sampling Rate (Max)
741 sa/sec

(API) Gyroscope Bandwidth (Max)
361 Hz

(API) Gyroscope Sampling Rate (Max)
741 sa/sec

(API) Orientation Sampling Rate (Max)
74 sa/sec
