Test Panel

The test panel is used to verify the analog signal connections with the data acquisition module by outputting predefined and unique signals on each channel.  The test signals are sinusoidal in nature and defined by an amplitude a frequency and an offset.  The expected outputs for each analog channel are listed in the Test Panel window once the option is selected.

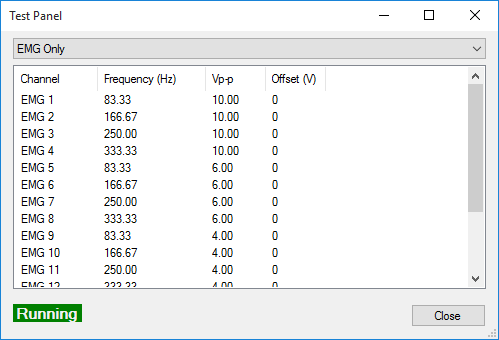

Figure 4 - Test Panel Signals
