Trigno System Settings

The settings tab allows several system parameters to be modified as needed

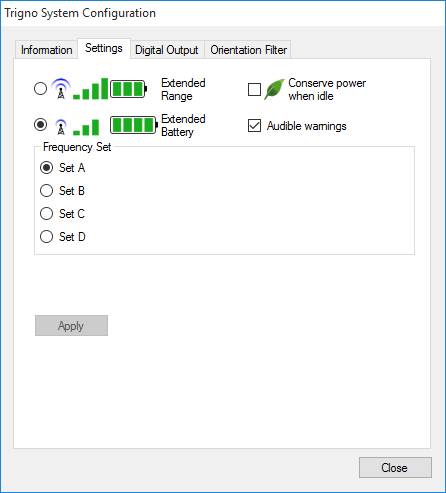

Figure 5 - Trigno Wireless System Settings

Extended Range vs Extended Battery

Insert description

Conserve Power When Idle

Insert description

Frequency Set

Use this settings to change the frequencies being used for wireless communication.  The default set is "A".  The frequency set should only be changed if nearby sources are interfering with Trigno communications or the particular operating environment is causing significant path loss on the current frequency set.  Note that changing the communication frequency set will require sensor re-pairing.  Frequencies within the sets are defined by the system and cannot be changed by the user.

Audible Warnings

This option will generate an audible "ping" along with a small message, whenever a sensor falls out of range or its battery is excessively low.
